Hydrex Performs Bow Thruster Blade Replacement in Barcelona

Hydrex carried out bow thruster blade replacements on a 270-meter container ship in Barcelona.

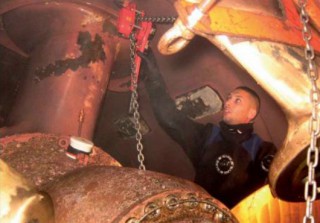

Hydrex diver during thruster blade removal

A condition of class was issued after cracks were detected in the old blades, forcing the vessel to go off hire until a solution was found.  Hydrex therefore mobilized a team to Barcelona and performed the operation on-site and underwater using the company’s flexible mobdocks.

When the diver/technicians arrived, the replacement blades were on board the container vessel. The new blades were prepared for installation while the rest of the Hydrex team readied the bow thruster tunnel for the operation.

The Hydrex flexible mobdocks were then installed on both sides of the thruster tunnel. Next the team could evacuate all water from the tunnel. In this manner a dry working environment was created.

Lifting one of the old thruster blades inside the closed off thruster tunnel
Lifting one of the old thruster blades inside the closed off thruster tunnel

The diver/technicians then removed the first blade of the bow thruster. They brought it to the surface. Next a replacement blade was lowered into the water and taken into the thruster tunnel. The team positioned the new blade on the bow thruster and bolted it on. This procedure was repeated for the other blades.

After the blades had been replaced they were put on torque. Leakage tests were carried out successfully and the divers removed the flexible mobdocks.

During the replacements the superintendent of the vessel was present. He followed the operation and gave his approval.

Press Release, April 04, 2014
